Mat selection advice by power:
- 60-100 W/m² mats are recommended for constant room heating when this is the main heating method.
- 100-150 W/m² mats are recommended for both constant and intermittent room heating in areas with standard and increased heat demand, as both the main and supplementary heating method in spaces such as bathrooms, toilets, hallways, bedrooms, living rooms, kitchens, basements, and insulated balconies.
- 150-200 W/m² mats are recommended for floors with very high humidity and heat demand, such as uninsulated basement floors, uninsulated garages, uninsulated balconies, and outdoor stairs.
- For wooden floors, only mats with a power range of 60-150 W/m² should be installed.
- It is not recommended to install heating mats with a power output higher than 150 W/m² into the floors of residential areas such as bedrooms, living rooms, hallways, bathrooms, or toilets. Due to the high power, these mats heat up more quickly and maintain higher temperatures than standard mats, which can cause discomfort. Possible side effects include foot swelling, fatigue, or other inconveniences.
Heating mats with a power output between 150 and 300 W/m² can be installed on walls as a replacement for towel warmers

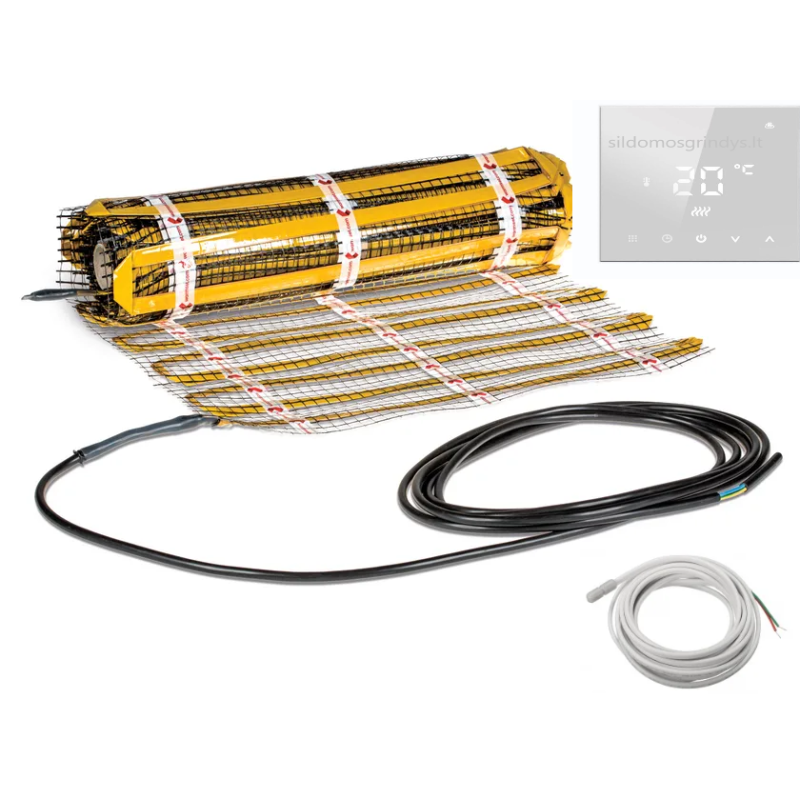

Warmset GOLD mat is an infrared mat using new technology that saves up to 30% energy. Ideal for renovating or installing new low-profile floors. Lifetime warranty included.
The mat can be installed in the leveling layer or adhesive layer. The insulation is made of polyamide film with excellent thermal resistance.
Warmset radiant heating is most effective when placed under a leveling compound or directly in the tile adhesive. In this setup, the heating element transfers heat to the surface, which then warms the room through the Joule effect.
In this case, the final flooring is installed directly onto the leveling layer. In recent years, traditional sand-cement screeds have been replaced with anhydrite self-leveling screeds. Within days, a more thermally conductive screed is achieved that retains heat longer without thermal shock. Modern screeds can be just a few centimeters thick, allowing installation of a new floor in only 2–3 cm (including leveling, heating, and final flooring).
Features:
-
Certified according to EN60335-2-96 welding quality standards (BS7671:2008)
-
Power: from 150W
-
Insulation resistance up to 80°C
-
Quick and easy installation
-
Ultra-thin (only 3 mm; 7 mm at looped ends)
-
Installation in leveling or adhesive layer
-
Suitable for tile, stone, ceramic, and wood flooring
-
Protection class: IPX7
-
Warranty: 25 year
-
Country of origin: Italy
Lifetime warranty applies after filling in the technical passport, which can be found in the warranty journal download.
You can download the warranty form in the attachments.
WiFi programmable thermostat for room and electric underfloor heating control
-
With room (0°C–40°C) and floor (0°C–90°C) sensors (3m floor sensor included)
-
Adjustable temperature range from 5°C to 35°C
-
Weekly programming (5+2 / 6+1 / 7)
-
Manual and automatic modes
-
Easy control, temperature adjustable in 0.5°C steps
-
Fits all standard flush-mounted boxes
-
All settings are retained in case of power outage; no need to reprogram
-
Voltage: 230V
-
Max load: 16A
-
Dimensions: 86x86x14.2 mm
-
Warranty: 24 months
