Mat selection advice by power:
- 60-100 W/m² mats are recommended for constant room heating when this is the main heating method.
- 100-150 W/m² mats are recommended for both constant and intermittent room heating in areas with standard and increased heat demand, as both the main and supplementary heating method in spaces such as bathrooms, toilets, hallways, bedrooms, living rooms, kitchens, basements, and insulated balconies.
- 150-200 W/m² mats are recommended for floors with very high humidity and heat demand, such as uninsulated basement floors, uninsulated garages, uninsulated balconies, and outdoor stairs.
- For wooden floors, only mats with a power range of 60-150 W/m² should be installed.
- It is not recommended to install heating mats with a power output higher than 150 W/m² into the floors of residential areas such as bedrooms, living rooms, hallways, bathrooms, or toilets. Due to the high power, these mats heat up more quickly and maintain higher temperatures than standard mats, which can cause discomfort. Possible side effects include foot swelling, fatigue, or other inconveniences.
Heating mats with a power output between 150 and 300 W/m² can be installed on walls as a replacement for towel warmers
About the product:

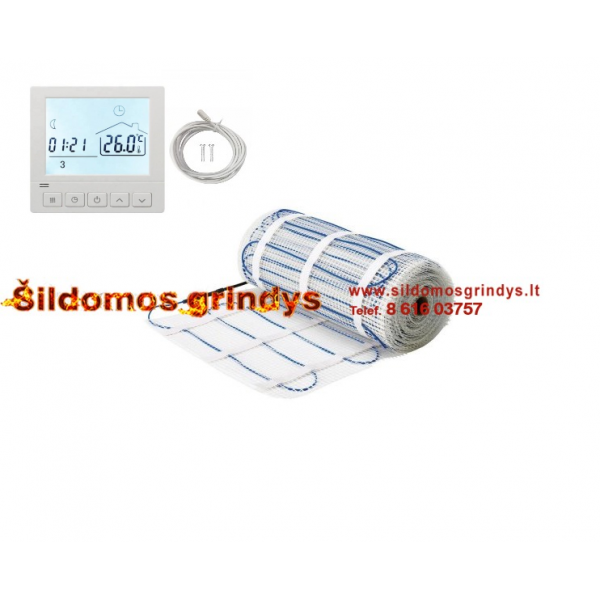

The electric underfloor heating mat is ideal for heating any room. It is very suitable for ceramic, natural stone, or glued wood floors. Very easy to install, the mat is adhesive on both sides, so it easily sticks to any clean surface. It is especially good for renovating old or laying new thin-structure floors.
Features:
• Double conductor cable.
• Very thin (heating element only 3 mm).
• Direct installation under tiles.
• Quick and convenient installation.
• Self-adhesive to the surface.
• CE certified.
• 12 years warranty.
Programmable thermostat for room and electric underfloor heating control.
e.
With room (0°C-40°C) and floor (0°C-90°C) temperature sensors (floor sensor 3m).
Adjustable temperature limits from 5°C to +35°C.
Weekly programming (5+2/6+1/7).
Manual and automatic modes.
Easy control, temperature adjustable every 0.5°C.
Fits all standard flush-mounted boxes.
All parameters are saved when the power supply is interrupted and do not need to be reprogrammed when the power is restored.
Voltage 230V.
Max. load 16A.
Dimensions: 86x86x14.2mm.
When installed as a water-heated floor thermostat, it can be directly connected to actuators, from 1 to 13 per thermostat.
Warranty 24 months.
