Brand Georas

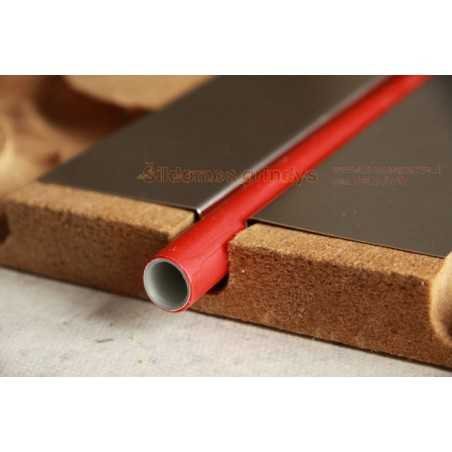

Wood fiber board with aluminum reflectors
Dimensions 1200x600x24 mm,
Board area 0.72 m²
Pipe diameter 16 mm
The price is indicated for one board.
Price per one board 0.72 m²
We also provide installation services
Delivery within 2-30 days
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
The board provides thermal and sound insulation functions. The dry heating system is a universal and optimal surface heating system for floors and walls, suitable for both new and existing buildings. It is especially suitable for renovations and frame houses where concreting is limited or not possible at all. The boards have specially shaped grooves with aluminum plates inserted and folded for pipe installation. The aluminum reflector covers almost the entire surface of the panel, ensuring even heat distribution without any losses.
Board with aluminum reflectors
No additional ends needed, the board already has turn loops
For underfloor heating
For wall heating
For ceiling heating
Board installation
Boards are laid on a smooth, cleaned surface (OSB, chipboard, concrete, tiles, or wooden floors)
It is recommended to glue the boards to the surface with PVA glue or special epoxy primer.
The pipe is laid out. In the turn loops where the pipe is laid, cut the aluminum foil with a utility knife.
Laminated floor panels can be laid on top, just remember to use an underlay for heated floors under the laminate.
The thickness of the underlay does not matter, as long as the manufacturer specifies that the underlay is suitable for heated floors.
If tiles need to be laid, Knauf Brown cement gypsum boards can be laid on the boards (one layer is sufficient). Gypsum boards serve as a support base for tile installation.
Gypsum boards are glued with PVA glue or special epoxy primer. Cement gypsum can be screwed with wood screws if the base is wooden, just make sure to mark the pipes accurately to avoid hitting them when screwing.
Cement boards Cetris can also be used as a base, but note that they are very heavy.
Boards installed on walls are fastened with glue or wood screws.
Technical Parameters:
Dimensions: 1200x600x24
Density (kg/m3): 250-270
Compressive strength [kPa]: > 100 (according to PN EN 826 marked value is 250–300 [kPa])
Declared thermal conductivity coefficient λ [W/mK]: 0.050
Thermal capacity c (J/kg*K): 2100
Thermal resistance R (m2*K/W): 0.46 (24mm thick board)
Sound absorption coefficient: 0.10 at 250–500 Hz; 0.30 at 1000–2000 Hz;
Water vapor diffusion resistance coefficient μ: 10 dry conditions; 5 wet conditions
Swelling: after 24 hours of soaking in water: ≤ 10%
Fire classification according to PN EN13501-1: E
Pipe spacing: 15 cm; 20 cm
Pipe diameter: 16 mm
Weight of one board: 4.6 kg with 20 cm spacing, 4.2 kg with 15 cm spacing
Material: wood fiber
Country of origin: EU
