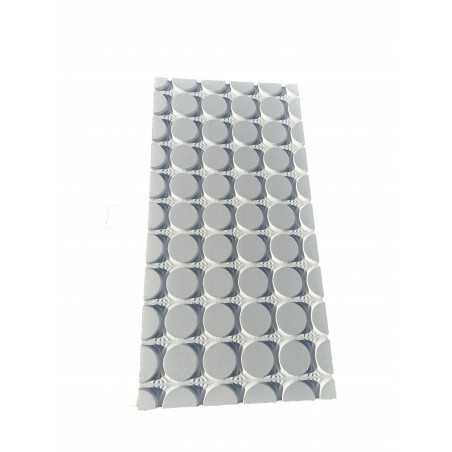

Polystyrene board 1200x600x20mm with circles, spacing 12 cm

The dry heating system is a universal and optimal surface heating system for floors and walls, suitable for both new and existing buildings.

It is especially suitable for renovations and frame houses where concreting is limited or not possible at all.

In the foam boards, special grooves are formed and covered with aluminum foil for pipe installation. The aluminum foil reflector covers the entire surface of the panel, ensuring even heat distribution without any losses.

The boards already have turn loops.

Board installation

Boards are laid on a smooth, cleaned surface (OSB, chipboard, concrete, tiles, or wooden floors).

It is recommended to glue the boards to the surface with polystyrene or PVA glue.

The pipe is laid out. In the turn loops where the pipe is laid, cut the aluminum foil with a utility knife.

Laminated floor panels can be laid on top, just remember to use an underlay for heated floors under the laminate.

The thickness of the underlay does not matter, as long as the manufacturer specifies that the underlay is suitable for heated floors.

If tiles need to be laid, Knauf Brown cement gypsum boards can be laid on the boards (one layer is sufficient). Gypsum boards serve as a support base for tile installation.

Gypsum boards are glued with PVA glue or special epoxy primer. Cement gypsum can be screwed with wood screws if the base is wooden, just make sure to mark the pipes accurately to avoid hitting them when screwing.

Cement boards Cetris can also be used as a base, but note that they are very heavy.

Tiles can be directly glued onto boards with aluminum foil, just prime the surface with a primer suitable for aluminum.

Buying in larger quantities - even better prices.

Specifications:

Strength class: EPS400 - 20mm thick board

Dimensions: 1200x600x20 mm

Pipe spacing: 120mm

Pipe diameter: 16/17 mm

For underfloor heating

For wall heating

For ceiling heating

The board provides thermal and sound insulation functions.

Declared thermal conductivity λ [W/(mK)]: 0.036

Declared thermal resistance R [(m2K)/W]: 0.69 (25 mm) / 0.83 (30 mm) / 1.39 (50 mm)

Fire classification according to EN 13501-1: E

Material: Foam

Aluminum 0,4mm

Weight of the board 330 g,

weight with reflectors 1050 g

Country of origin: EU
