The dry heating system is a universal and optimal surface heating system for floors and walls, suitable for both new and existing buildings.
It is especially suitable for renovations and frame houses where concreting is limited or not possible at all.

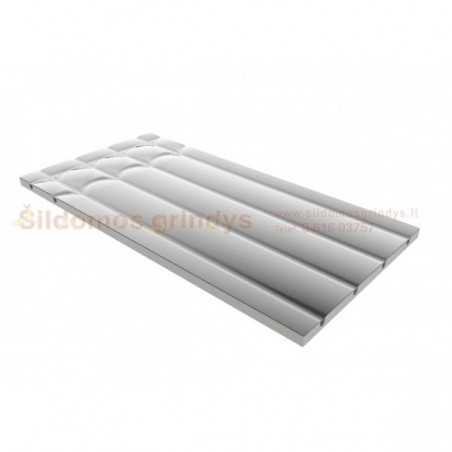

In the foam boards, special grooves are formed and covered with aluminum foil for pipe installation. The aluminum foil reflector covers the entire surface of the panel, ensuring even heat distribution without any losses.
The boards already have turn loops.
Quick Installation Guide: Dry Underfloor Heating System (EPS/XPS)
1. Subfloor Preparation
- Panels are laid on a flat, clean, and dry surface (concrete, OSB, tiles, wood).
- If needed, fix panels using PVA glue (for wood) or solvent-free MS polymer adhesives (for concrete or tiles).
2. Heating Panel Installation
- EPS or XPS panels with pre-cut pipe grooves and aluminum reflector foil.
- Pipes are inserted into grooves; foil is cut in turning zones.
- Panels can be glued or laid loosely (if the top layer evenly distributes the load).
3. Top Layer/Baseboard (if needed)
- For glued floorings or heavy loads, install:
- Knauf Brio, Cetris, Georas TE boards or
- Self-leveling compound (e.g., Weberfloor 4310).
- When gluing onto foil – use primer compatible with metal surfaces (e.g., Mapei Eco Prim Grip).
4. Floor Covering Installation
Flooring Type
| Installation Conditions
|
Laminate | With underlay, directly on panels (from 300 kPa). |
Parquet | Directly on panels if the load is light. Use additional base if heavy furniture. |
Vinyl | Only on XPS400 (≥400 kPa). On lower strength panels – a support layer is needed. |
Tiles | Directly (with primer) or on Cetris / Knauf Brio boards. |
📌 About Panel Strength:
- XPS300 (300 kPa): suitable for laminate, floating parquet.
Not recommended for vinyl or tiles without a support layer. - XPS400 (400 kPa): high-strength panels – allow direct installation of vinyl or tiles, if surface is flat and stable.
🛠 When in doubt – use a load-distribution base. It will ensure long-term durability and protect the heating system.
Examples of pipe routing:
Buying in larger quantities - even better prices.
Specifications:
Strength class: EPS400 - 20mm thick board
Dimensions: 1200x600x25 mm
Pipe spacing: 150mm, 200mm
Pipe diameter: 16/17 mm
For underfloor heating
For wall heating
For ceiling heating
The board provides thermal and sound insulation functions.
Declared thermal conductivity λ [W/(mK)]: 0.036
Declared thermal resistance R [(m2K)/W]: 0.69 (25 mm) / 0.83 (30 mm) / 1.39 (50 mm)
Fire classification according to EN 13501-1: E
Material: Foam
Aluminum foil 100 μm
Weight of one board 660g
Country of origin: EU
