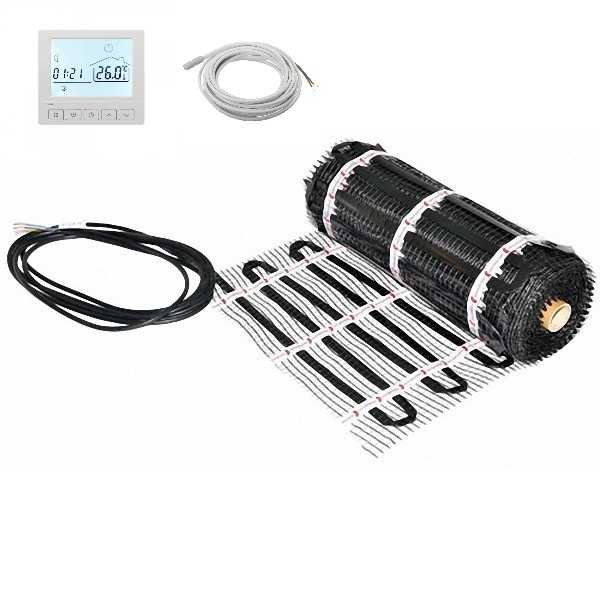

Warmset Black-85 infrared heating mat kit with GC-15 thermostat

The Warmset Black mat features new infrared technology, which saves up to 30% energy. It is especially well-suited for renovating old or laying new thin-structure floors.

10 years warranty

The mat can be installed in a leveling layer, adhesive layer. The mat's insulation is made of polyamide film, which has very good thermal resistance.

 Features:

• Certified EN60335-2-96 welding quality requirements (BS7671:2008).

• Power: from 85W

• Insulation resistance up to 80°C.

• Quick and convenient installation

• Very thin (only 3 mm, at turns 7mm).

• Installation in leveling or adhesive layer

• Suitable for tile, stone, ceramic, and wood floors.

• Protection class IPX7

• Warranty: 10 years

• Country of origin: Italy

Important

The  warranty applies upon filling out the technical passport, which can be found by downloading the warranty journal.

You can download the warranty form in the attachments.

Programmable thermostat for room and electric underfloor heating control.

With room (0°C-40°C) and floor (0°C-90°C) temperature sensors (floor sensor 3m).

Adjustable temperature limits from 5°C to +35°C.

Weekly programming (5+2/6+1/7).

Manual and automatic modes.

Easy control, temperature adjustable every 0.5°C.

Fits all standard flush-mounted boxes.

All parameters are saved when the power supply is interrupted and do not need to be reprogrammed when the power is restored.

Voltage 230V.

Max. load 16A.

Dimensions: 86x86x14.2mm.

When installed as a water-heated floor thermostat, it can be directly connected to actuators, from 1 to 13 per thermostat.

Warranty 24 months
