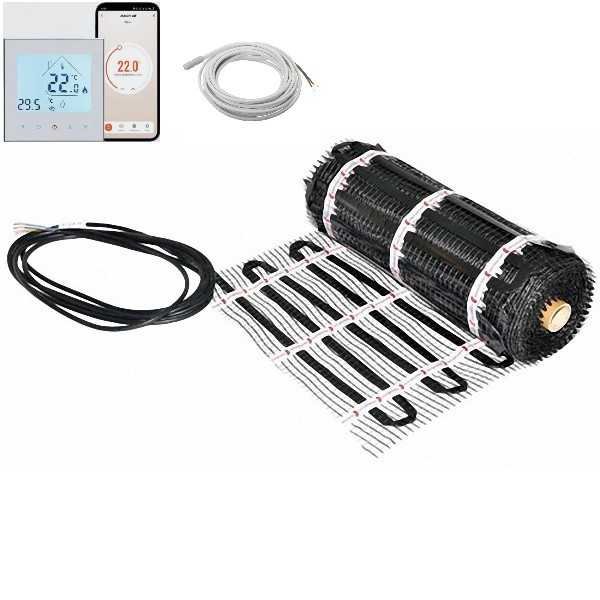

Warmset Black-85 infrared heating mat kit with GC-18 WIFI thermostat

Mat selection advice by power:

•         60-100 W/m² mats are recommended for constant room heating when this is the main heating method.
•         100-150 W/m² mats are recommended for both constant and intermittent room heating in areas with standard and increased heat demand, as both the main and supplementary heating method in spaces such as bathrooms, toilets, hallways, bedrooms, living rooms, kitchens, basements, and insulated balconies.
•         150-200 W/m² mats are recommended for floors with very high humidity and heat demand, such as uninsulated basement floors, uninsulated garages, uninsulated balconies, and outdoor stairs.
•         For wooden floors, only mats with a power range of 60-150 W/m² should be installed.
•         Mats with power greater than 150 W/m² are not recommended for residential areas such as bedrooms, living rooms, hallways, bathrooms, or toilets. Due to their high power, these mats heat up faster and maintain higher temperatures than standard mats, which can cause discomfort. Potential issues include swelling of the feet, fatigue, or other discomforts.

The Warmset Black mat features new infrared technology, which saves up to 30% energy. It is especially well-suited for renovating old or laying new thin-structure floors.

10 years warranty

The mat can be installed in a leveling layer, adhesive layer. The mat's insulation is made of polyamide film, which has very good thermal resistance.

 Features:

• Certified EN60335-2-96 welding quality requirements (BS7671:2008).

• Power: from 85W

• Insulation resistance up to 80°C.

• Quick and convenient installation

• Very thin (only 3 mm, at turns 7mm).

• Installation in leveling or adhesive layer

• Suitable for tile, stone, ceramic, and wood floors.

• Protection class IPX7

• Warranty: 10 years

• Country of origin: Italy

WiFi programmable thermostat for room and electric underfloor heating control.

Easy control via phone.

With room (0°C-40°C) and floor (0°C-90°C) temperature sensors (floor sensor 3m).

Adjustable temperature limits from 5°C to +35°C.

Weekly programming (5+2/6+1/7).

Manual and automatic modes.

Easy control, temperature adjustable every 0.5°C.

Fits all standard flush-mounted boxes.

All parameters are saved when the power supply is interrupted and do not need to be reprogrammed when the power is restored.

Voltage 230V.

Max. load 16A.

Dimensions: 86x86x14.2mm.

When installed as a water-heated floor thermostat, it can be directly connected to actuators, from 1 to 13 per thermostat.

Warranty 24 months

Important

The  warranty applies upon filling out the technical passport, which can be found by downloading the warranty journal.

You can download the warranty form in the attachments.
