OSB 1250x2500x22mm Dry Underfloor Heating Panels with Aluminum Heat Distribution Reflectors for Ø16 mm Pipe

Dry Underfloor Heating System with OSB Panels and Aluminum Heat Distribution Reflectors

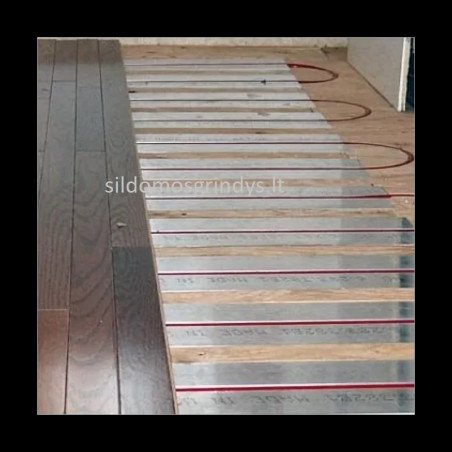

The dry underfloor heating system is a versatile and efficient solution for both new construction and renovation projects. It is particularly suitable for timber frame houses, wooden floor structures, and buildings where the installation of a concrete screed is limited or not possible.

The system is based on grooved OSB-3 panels with precisely machined channels for aluminum heat distribution reflectors and Ø16 mm underfloor heating pipes.

Aluminum heat distribution reflectors (heat distribution plates) efficiently transfer and distribute heat from the heating pipe across the entire floor surface. Thanks to the excellent thermal conductivity of aluminum, heat is spread evenly, minimizing temperature differences and improving overall heating efficiency.

System Benefits

• Suitable for new builds and renovation projects.

• No concrete screed required.

• Lightweight floor construction.

• Fast and simple installation.

• Quick response to temperature changes.

• Low floor build-up height.

• Compatible with a wide range of floor coverings.

• Ideal for timber frame, modular, and wooden buildings.

• Suitable for both floor and wall heating applications.

• Uniform heat distribution across the heated surface.

Technical Specifications

• Base material: OSB-3 panel.

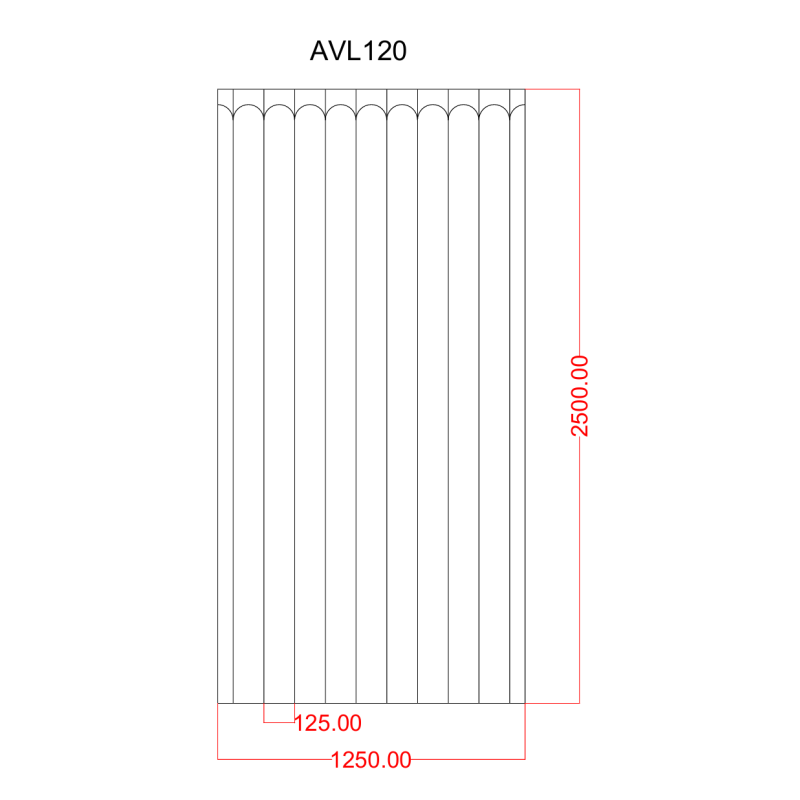

• Dimensions 1250x2500 mm

• Aluminum heat distribution reflector thickness: 0.4 mm.

• Panel thickness options: 22 mm,

• Heating pipe size: Ø16 mm.

• Available pipe spacing:

  • 125 mm;

  • 156.25 mm;

  • 208.33 mm;

  • 312.5 mm.

Order Processing

To ensure the highest product quality and manufacturing accuracy, OSB underfloor heating panels with aluminum heat distribution reflectors are produced exclusively upon receipt of an order.

The standard production lead time is 10–15 working days from order confirmation.

Installation of Aluminum Reflectors

The aluminum heat distribution reflectors are fitted into specially machined grooves. Where additional fixing is required, they can be bonded using:

• Zettex X40;

• MS 70 Polymer High-Tack.

These adhesives provide reliable bonding between the aluminum reflector and the OSB substrate.

Preparing the Surface for Floor Coverings

The OSB panels are structurally strong enough to support normal floor loads, making an additional load-distribution layer unnecessary.

Laminate flooring, engineered wood flooring, click vinyl flooring, and other floating floor systems can be installed directly onto the heating panels according to the flooring manufacturer's recommendations.

Where a perfectly level surface is required or where bonded floor finishes are planned, additional boards can be installed over the system, such as:

• Knauf Brio boards;

• Knauf Brown boards;

• High-density wood fiber boards;

• Other dry floor system boards.

These boards are used to create a smoother and more stable substrate for the final floor covering.

Knauf Brio, Knauf Brown, and high-density wood fiber boards can also be bonded using MS 70 Polymer High-Tack adhesive.

Custom-Made Panels

To simplify installation and reduce waste on site, panels can be manufactured according to the specific layout of the building or individual rooms.

Custom-cut OSB panels are supplied with pre-machined pipe channels and installed aluminum heat distribution reflectors.

For easier installation, panels can be:

• Numbered according to the installation plan.

• Prepared with pipe routes between rooms.

• Designed for pipe transitions and connections.

• Adapted to manifold connection areas.

• Manufactured according to the project's underfloor heating design.
