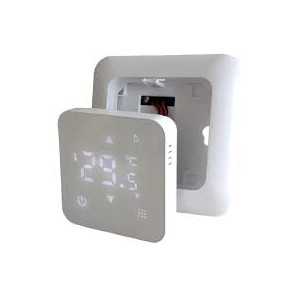

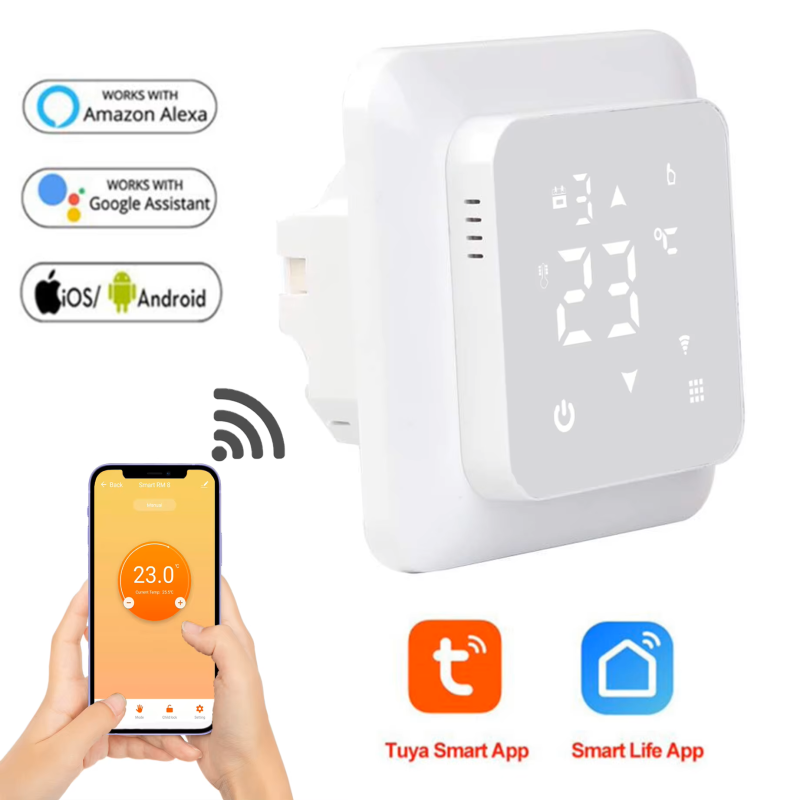

The GC-517 digital programmable thermostat features programmable 6 events per day, ensuring an energy-saving and comfortable living environment, easy to install, and convenient to use. This touch screen thermostat is designed for heating, multifunctional, and has a large LCD screen. Manual mode and program mode are selectable. Background lighting for easier viewing. Based on the comparison result of the room temperature and the set temperature, it controls the heating equipment's on/off through a relay to achieve constant indoor temperature and save energy. Suitable for 82 *82 mm or European 60 mm round box.
This programmable floor heating thermostat is compatible with water floor heating systems, mounted underground, fits 86 European cartridges, and has CE certification. AC230V output, maximum current 16A, provides all necessary control to save money and energy while increasing comfort.
The room thermostat can measure using the built-in air sensor or the 3m external sensor probe. With the external sensor, it is suitable for 3950, 10K=25°C sensor.
The thermostat has touch buttons, and the temperature range can be set from 1 to 70 °C. It has manual mode, programming mode, and holiday mode to meet your unique needs.
The thermostat has a weekly programming function, which can automatically switch to the required temperature at the set time. There are 6 fixed periods on weekdays and 2 fixed periods on weekends. At the same time, you can freely choose 5 days, 6 days, or 7 days. It gives you the freedom to plan your weekly schedule and helps save energy bills.
The thermostat can be configured to automatically turn off the heating when it detects a rapid drop in room temperature (e.g., when a window is opened) to prevent energy waste.
The thermostat has a temperature calibration function. When the measured temperature is very different from the actual room temperature, it can be calibrated by 1°C.
The digital thermostat has an LCD screen, and the large screen displays the room temperature, set temperature, current heating status, and current time, making it easy to understand the current status of the thermostat.
The thermostat has white backlighting that lights up when the thermostat is operating and automatically turns off after 10 seconds if no button is pressed (the time can be set from 5 to 30 seconds), making it convenient to set the thermostat in dark environments.
The thermostat has an off-memory setting parameter function, and once the parameter is set, the information can be saved for a long time even when turned off.
- Product Specifications
- Power：90-240Vac 50/60HZ
- Sensor：NTC(10k)1%
- Current：16A (WE)
- Set temperature range 1~70°C
- Default set temperature range：5~35℃
- Accuracy：±0.5℃
- External sensor：options（NTC）
- Size：55*55mm（without frame） 82*82mm(frame)
- Mounting method: wall-mounted
