- COP up to 5,33
- A+++ in heating at 35°C and A+ in DHW
- “A” water pump with variable speed
- Long piping lengths
- Built-in magnetic water filter
- Operation without backup heating at -25°C
- 60°C hot water even at -10°C outside temperature
- Optimised user interface and improved features
- Optional Aquarea Smart and Service Cloud and integration into BMS projects
Specifications
See less

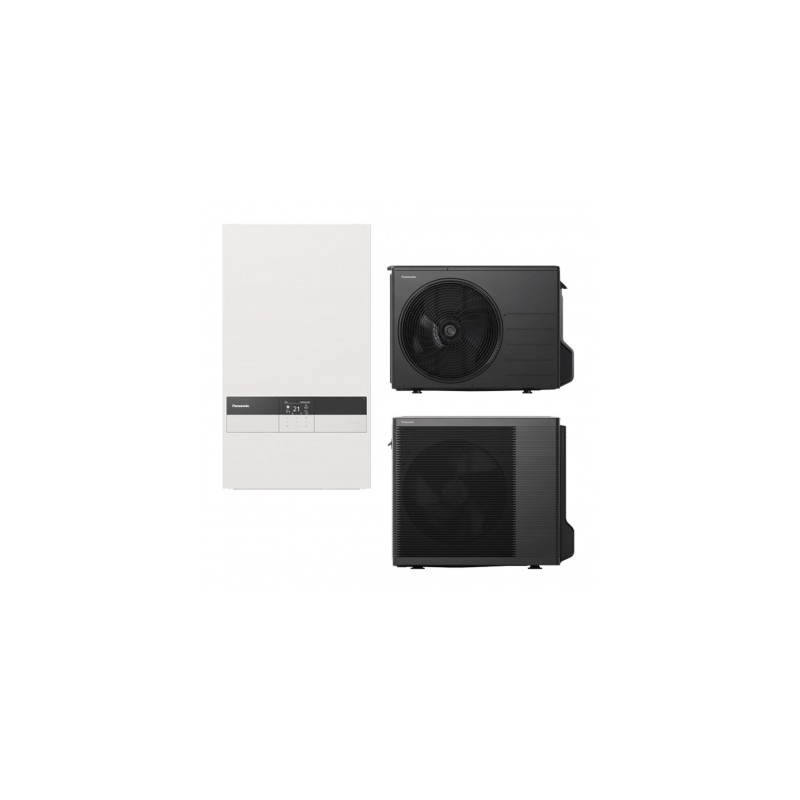

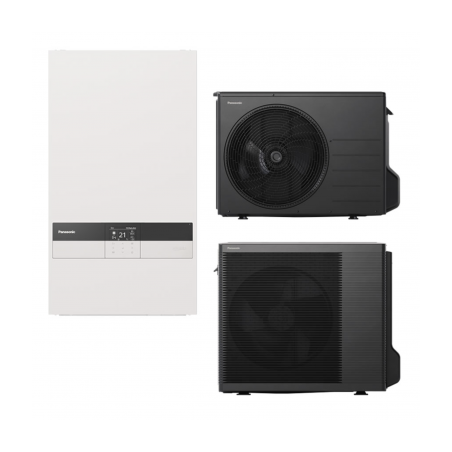

K Generation 1 phase · R32
5 kW
Heating cold climate. Seasonal energy efficiency (W 35°C / W 55°C) ηs % 237 / 165
Elevation difference (in/out) m 30
Outdoor dimension (Depth) mm 380
Outdoor dimension (Width) mm 875
Heating water flow (∆T=5 K. 35°C) L/min 14,3
A class pump (Number of speeds) Variable speed
Water pipe connector Inch R 1¼
Indoor sound pressure (Cool) dB(A) 28
Heating cold climate. Energy class (W 35°C / W 55°C) (1) A+++ to D A+++ / A+++
Heating cold climate. Seasonal energy efficiency (W 35°C / W 55°C) SCOP 6,00 / 4,20
Operation range - Outdoor ambient (Heat) °C -25 ~ +35
Heating warm climate. Energy class (W 35°C / W 55°C) (1) A+++ to D A++ / A+
Heating warm climate. Seasonal energy efficiency (W 35°C / W 55°C) SCOP 4,08 / 2,95
Heating warm climate. Seasonal energy efficiency (W 35°C / W 55°C) ηs % 160 / 115
Heating average climate. Energy class (W 35°C / W 55°C) (1) A+++ to D A+++ / A++
Heating average climate. Seasonal energy efficiency (W 35°C / W 55°C) SCOP 5,12 / 3,63
Heating average climate. Seasonal energy efficiency (W 35°C / W 55°C) ηs % 202 / 142
EER (A 35°C, W 18°C) 4,9
Cooling capacity (A 35°C, W 18°C) kW 5
Electric backup heater kW 3,00 — 6,00
Outdoor sound power (Heat) (2) dB(A) 55
Recommended fuse A 16 / 16 — 16 / 30
Recommended minimum cable size, supply 2 (5) mm² 3x1,5 — 3x4,0
Recommended minimum cable size, supply 1 (5) mm² 3x1,5 — 3x1,5
COP (A -7°C, W 55°C) 1,89
Electrical information 3kW — 6kW
Indoor unit 6kW electric heater WH-SDC0309K6E5
Indoor unit 3kW electric heater WH-SDC0309K3E5
Kit 6kW electric heater KIT-WC05K6E5
Kit 3kW electric heater KIT-WC05K3E5
Operation range - Outdoor ambient (Cool) °C +10 ~ +43
COP (A +7°C, W 35°C) 5,1
Indoor net weight kg 40 (3kW) / 41 (6kW)
Indoor dimension (Height) mm 892
Pipe length range m 3 ~ 40 (3 ~ 50) (3)
EER (A 35°C, W 7°C) 3,05
Cooling capacity (A 35°C, W 7°C) kW 5
COP (A -7°C, W 35°C) 2,79
Heating capacity (A -7°C, W 35°C) kW 5
COP (A +2°C, W 35°C) 3,57
Heating capacity (A +2°C, W 35°C) kW 5
Outdoor dimension (Height) mm 795
Heating capacity (A +7°C, W 35°C) kW 5
Additional gas amount g/m 25
Heating capacity (A -7°C, W 55°C) kW 5
COP (A +2°C, W 55°C) 2,29
Heating capacity (A +2°C, W 55°C) kW 5
COP (A +7°C, W 55°C) 3,03
Heating capacity (A +7°C, W 55°C) kW 5
Outdoor unit WH-UDZ05KE5
Pipe length for additional gas m 10
Pipe diameter (Gas) Inch (mm) 5/8 (15,88)
Pipe diameter (Liquid) Inch (mm) 1/4 (6,35)
Indoor dimension (Depth) mm 348
Indoor dimension (Width) mm 500
Refrigerant (R32) / CO2 Eq. kg / T 1,3 / 0,878
Indoor sound pressure (Heat) dB(A) 28
Outdoor net weight kg 55
(1) Scale from A+++ to D.
(2) Sound power in accordance to 811/2013, 813/2013 and EN12102-1:2017 at +7°C.
(3) Operation range down to -25°C in heating with 3 ~ 40m pipe length range, operation range down to -15°C in heating with 3 ~ 50m pipe length range.
(4) Check local regulations.
* EER and COP calculation is based in accordance to EN14511.
** This product is designed to comply with the European Water Quality Directive 98/83/EC amended by 2015/1787/EU. The lifespan of the product is not guaranteed in the case of the use of groundwater, such as spring water or well water, the use of tap water when salt or other impurities are contained, nor in areas of acidic water quality. Maintenance and warranty costs related to these cases are the customer’s responsibility.
