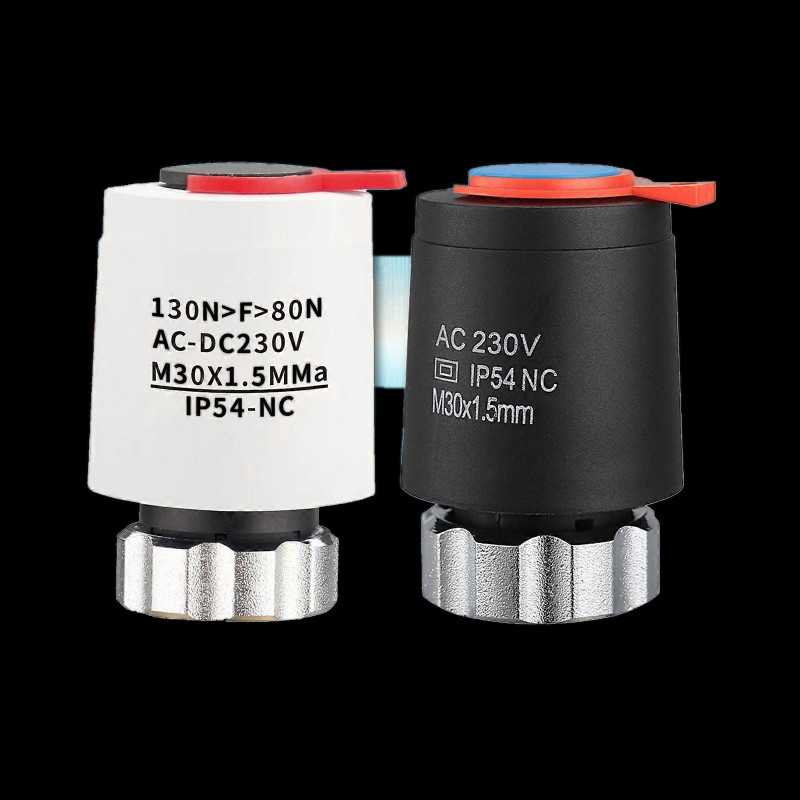

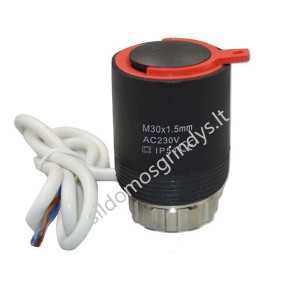

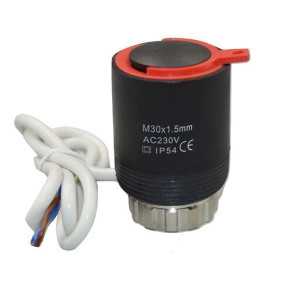

Thermal Actuator for Underfloor Heating Manifold 230V
  • Thermal Actuator for Underfloor Heating Manifold 230V
  • Thermal Actuator for Underfloor Heating Manifold 230V
  • Thermal Actuator for Underfloor Heating Manifold 230V
  • Thermal Actuator for Underfloor Heating Manifold 230V

Thermal Actuator for Underfloor Heating Manifold 230V

Georas
Grade
Write your review

  • Power supply: 230 V

  • Thread: M30×1.5

  • Type: NC (Normally Closed)

  • Application: control of underfloor heating manifold circuit valves

  • Control: thermostat or zone control module

Select color
€21.00
€12.60
Tax included
€17.36 €10.41 Tax excluded
2-5
Quantity
In stock
100 Items



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Description

Product Description

Thermal actuator for underfloor heating manifold 230 V (M30×1.5, NC) is a thermo-electric actuator designed for automatic opening and closing of underfloor heating circuits according to a thermostat signal. The actuator is installed on manifold valves with an M30×1.5 thread and operates as NC (Normally Closed) — when there is no power supply, the valve remains closed, and when a 230 V signal is applied, the actuator opens the valve.

It is a reliable and quiet solution for zone heating control, allowing each heating loop to be regulated individually, improving comfort and helping to save energy.

✅ Key Advantages

  • Zone control – each room or circuit can be controlled separately

  • NC (Normally Closed) – safe operation: the circuit closes automatically if power is lost

  • Suitable for most manifolds with M30×1.5 threaded valves

  • Thermo-electric operation – quiet and reliable performance

  • Easy installation and connection

  • Helps reduce energy consumption and maintain comfortable indoor temperature

🔧 Technical Data (Short)

  • Power supply: 230 V

  • Thread: M30×1.5

  • Type: NC (Normally Closed)

  • Application: control of underfloor heating manifold circuit valves

  • Control: thermostat or zone control module

📌 Application

  • Water-based underfloor heating systems

  • Manifolds with M30×1.5 valves

  • Zone heating control (with 230 V thermostats / controllers)

Product Details
