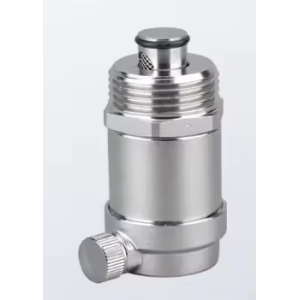

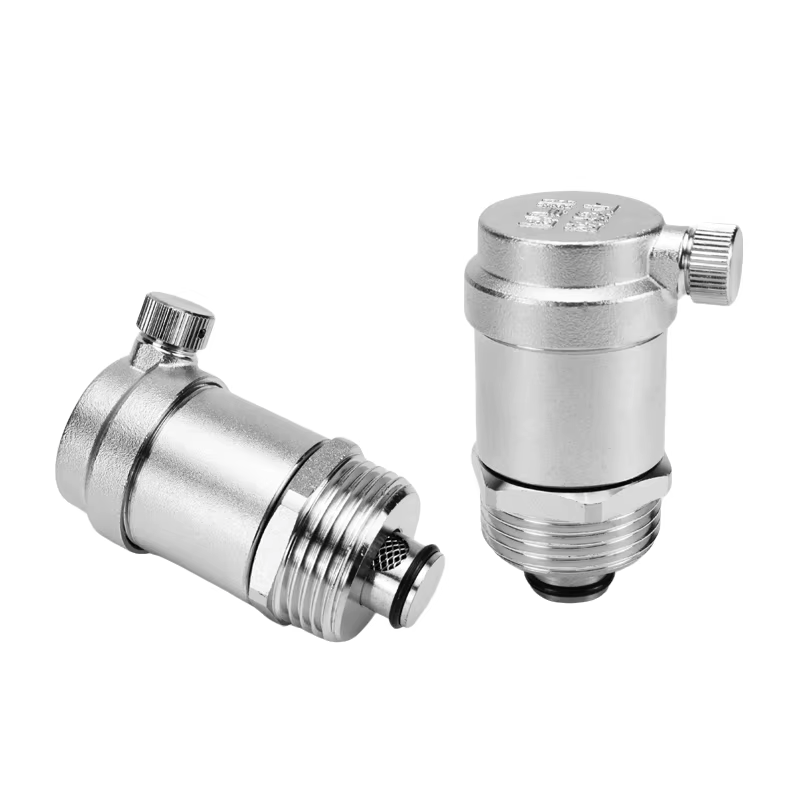

Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh
  • Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh
  • Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh
  • Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh
  • Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh

Stainless Steel Automatic Air Vent with Protection, Automatic Air Vent with Protective Mesh

Grade
Write your review

Material – SS304

Thread – 1/2

Working temperature – 0–110 °C

Select diameter
€15.73
Tax included
€13.00 Tax excluded
2-5
Quantity
In stock
40 Items



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Description

Product Overview and Main Function

  • Product Name: 1/2 and 3/4 inch Brass Side Air Vent Valve

  • Main Function: Automatically or manually releases unwanted air from a pressurized water system (such as heating systems, radiators, and pipelines). This helps prevent problems such as air locks, reduced efficiency, noise (banging), and corrosion.

Key Features and Attributes

  • Material and Construction:

  • Body: Forged Stainless Steel. It offers higher strength, corrosion resistance, and durability compared to other materials.

  • Internal mechanism: The float is usually made of plastic, while the main seal is made of high-temperature-resistant nitrile rubber (NBR) or EPDM.
    This ensures reliable operation and tight sealing.

Operation and Design

  • Automatic operation: When air enters the valve chamber, the float drops, opening the outlet and releasing the air. When water enters again, the float rises and reseals the valve.

  • Manual control: Includes a manual screw or cap that can be opened to intentionally release air, which is necessary for system maintenance or initial filling.

  • Side discharge port: The discharge outlet is located on the side, allowing a hose to be connected so that released water can be directed to a drain or safe location. This is an important feature for clean installation and preventing water damage.

Performance and Specifications

  • Pressure rating: Typically a maximum working pressure of 10 bar (~145 PSI). Always check the rating of the specific product.

  • Temperature rating: Suitable for temperatures up to 110 °C (230 °F), meeting the requirements of most hot water and heating systems.

  • Medium: Designed for water and glycol mixtures (with inhibitors).

Application Scenarios

  • Hydronic heating systems: on radiators, manifolds, and boiler rooms

  • Solar thermal systems

  • Hot water recirculation systems

  • Industrial cooling circuits
