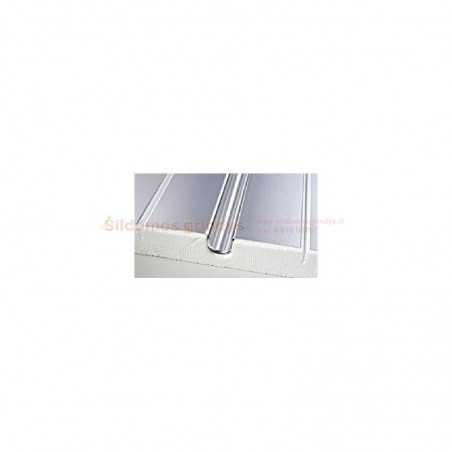

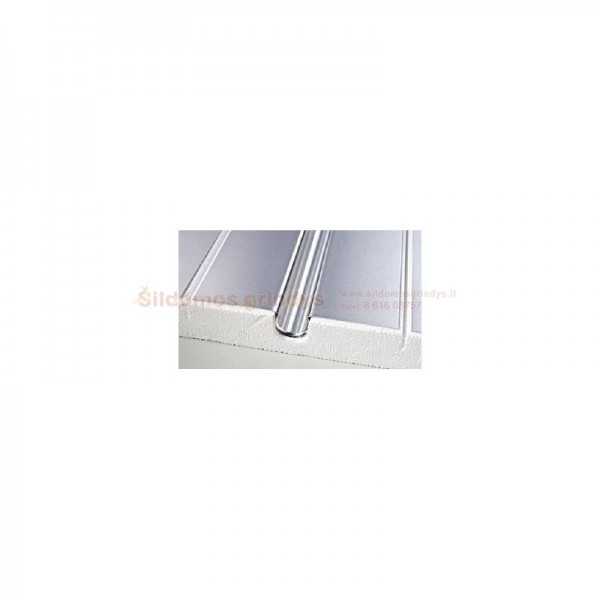

Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.
  • Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.
  • Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.
  • Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.
  • Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.
  • Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.

Foam insulation panel 1200 × 600 × 20 mm with aluminium reflectors.

Georas

Brand: Georas

Dry Floor Polystyrene Panel TFA20/2

With aluminium reflectors

Panel price:

Dimensions (L x W x H): 1200 × 600 × 20 mm

Pipe spacing: 150 mm, pipe Ø: 16 mm

Delivery time: 1–7 days


Volume discounts

Quantity Unit price You Save
50 €17.25 Up to €287.50
100 €16.10 Up to €690.00
€23.00
Tax included
€19.01 Tax excluded
2-5
Quantity
In stock
150 Items



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Description

Dry floor foam panel with aluminium reflectors

The panel provides thermal and sound insulation functions.

The dry heating system is a universal and optimal underfloor and wall surface heating system, suitable for heating both new and existing buildings. It is especially suitable for renovations and timber-frame houses, where the possibilities for concrete pouring are limited or not possible at all.

The panels contain aluminium sheets that have been shaped and inserted into specially formed grooves for pipe installation. The aluminium reflector covers almost the entire surface of the panel, ensuring even heat distribution without any losses.

For larger quantities – even better prices.

Contact us:

+37061603757, info@sildomosgrindys.lt

Specifications / Characteristics:

Material: EPS (foam polystyrene)

Building material class: E

Thermal conductivity: 0.036 W/mK, R > 0.8 m²K/W

Declared thermal resistance R [(m²·K)/W]: 0.83 (30 mm) / 1.35 (50 mm)

Compressive strength: 400 kPa at 10% compression according to EN 826

Pipe spacing options: VA 150, VA 400 (single and double loop)

Dimensions (L x W x H): 1200 × 600 × 20 mm

For underfloor heating

For wall heating

For ceiling heating

Country of origin: EU
